Description
During excessive testing on our own TJ and from collected knowledge of friends and customers we figured out, that neither the stock versions or the Aluminum light weight Version of the Tank Skid Plates for the Wrangler can withstand the hits of rocks or other hard Impacts for long. Putting the Tank to another Position is no Option for us, since we will keep the Car also Street usable and Legal.

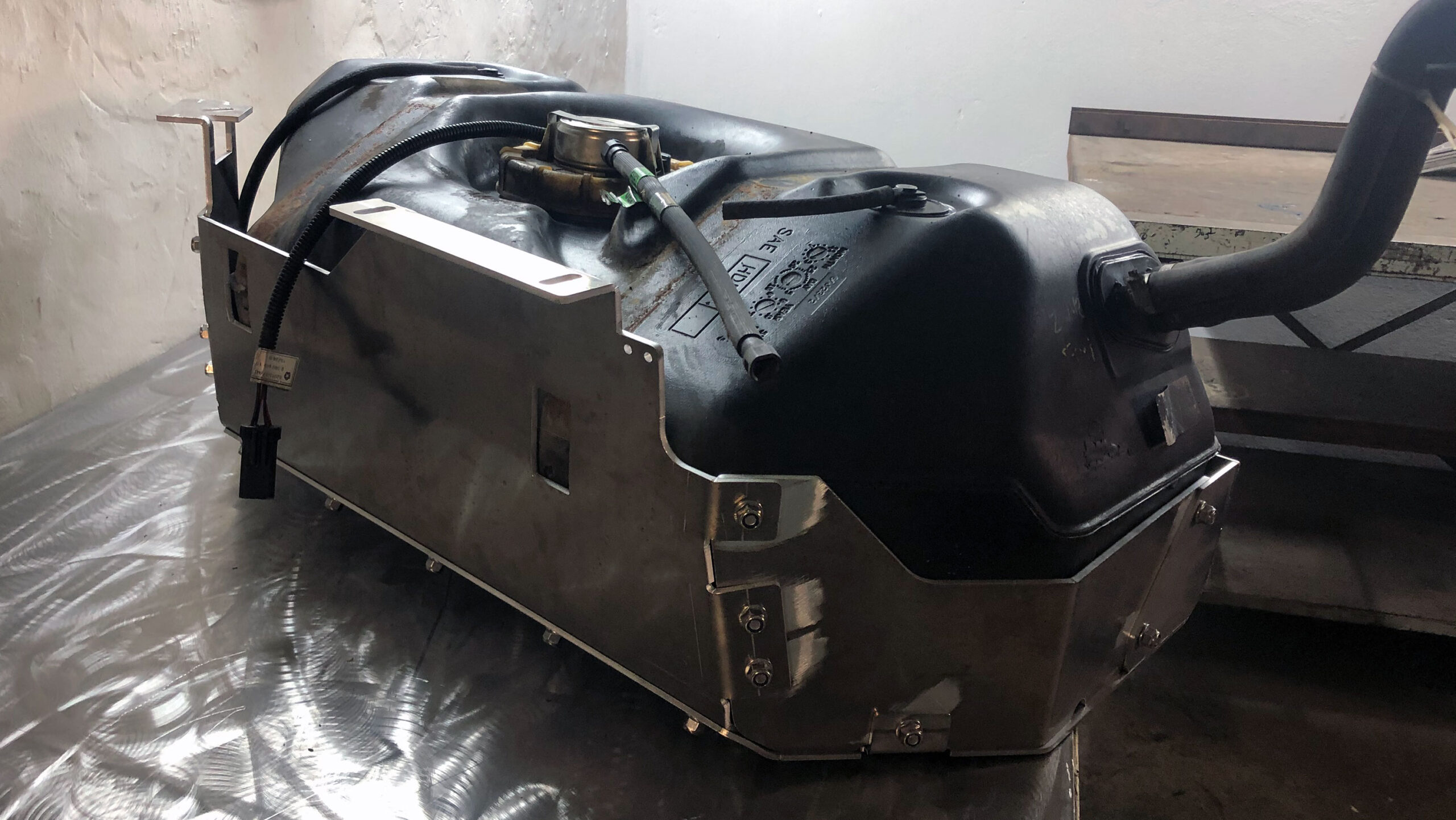

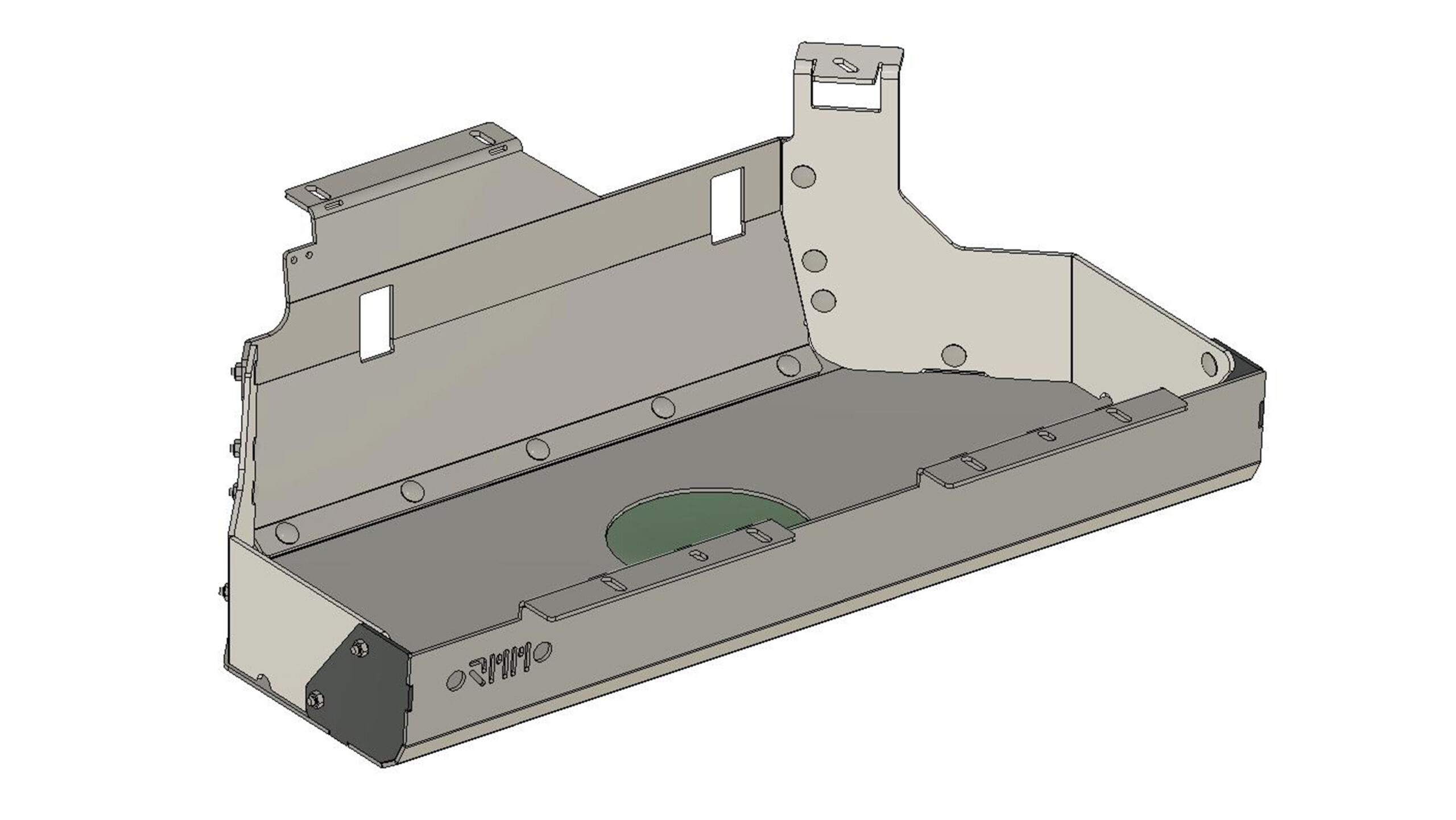

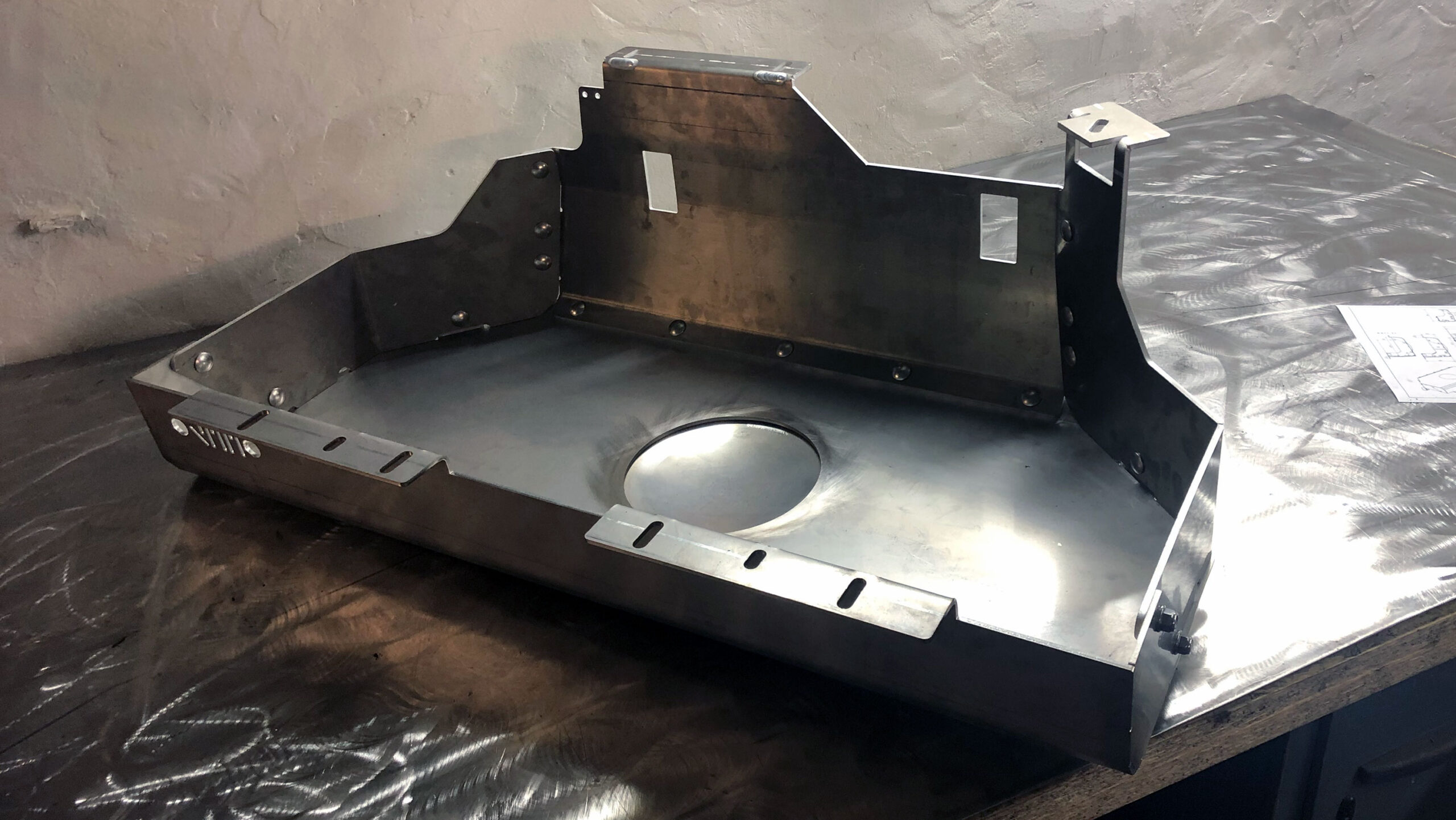

Therefore, we invented a skid Plate which is way stronger than the stock or the Aluminum Aftermarket Versions but only add as much as necessary additional weight to the TJ. Our Skid Plate consists of a mix of 4mm Stainless steel at the rear section for impact strength, a 4mm reinforced Stainless lower Section against impact and best ability to skid over rocks. Aluminium in this position acts like glue on Rocks and wears very quick. We also added a pump sump plate which adds streght to this section and saves the pump assembly. The side panels and the front mounting brackets are made from AlMg3 Aluminium, to reduce the weight where it’s not necessary to be.
We also added some room in the front of the Skid Plate to help you with clearance issues during axle conversions. We use Nissan Patrol axles on one car and there is enough room for full suspension travel upwards.
No extra Bodylift is needed for the installation of this Skid Plate.
All parts come unpainted with mounting hardware! If you prefer having your parts powder coated in the color of your choice, we can offer this for reasonable prices.
